The new B.M.V. pruning machine model "FL300N" has been developed for carrying out green and dry pruning on any kind of tree.  For dry pruning it is equipped with discs Ø 350 or 400 for branches up to 6-7 cm. of diameter.  For green pruning, quickly and simply, it is possible to mount knives. The cutting group can work both in vertical and horizontal.

Thanks to a double sliding on central column it is possible to reach cutting height  until max 3,50 mt. in horizontal (Topping).
The belt transmission do not need of any adjustment.
The power is delivered by the tractor hydraulic intakes, in case this supplies at least 40 lt./min of oil at regimen; otherwise it is possible to supply and independent hydraulic tank complete with pump/over gear and cooling radiator.
The different hydraulic movements allow the machine any adjustment to the row.
Many different particulars confer to FL300N strength and easy use.
All models are equipped with trestle and parking protections.
Mounting and dismounting  are quick and easy on any kind of tractor.

Accesorios

Net + Lexan protection

Net + Lexan protection

40 lt. fixed tank

40 lt. fixed tank

Tank 80 lt

Gamma bio serbatoio 80 lt.

Double blade cutting bar 2,60 metres

6-way valves 12 volts

Endless screw combined with adjustment crank for mechanical positioning of cutting bar

3 points attack tractor

Flange for tractor attack

Electro-hydraulic distributor for pistons with mobile joystick

Inclination 20° forward of the cutting group

Disc clamping flange with teeth

Immagini

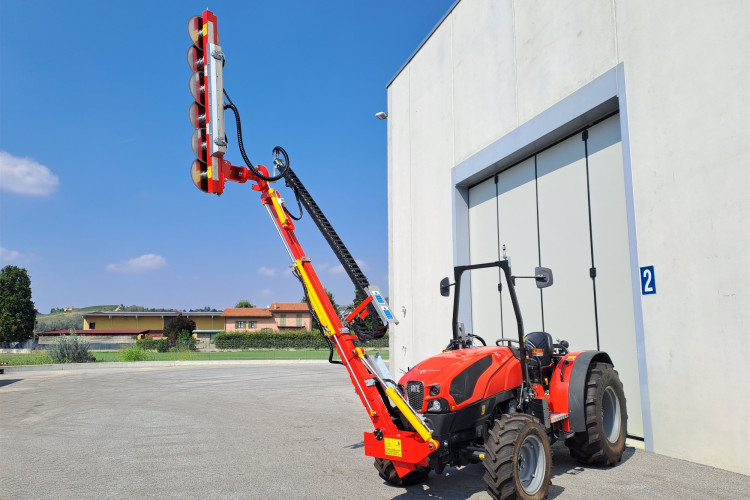

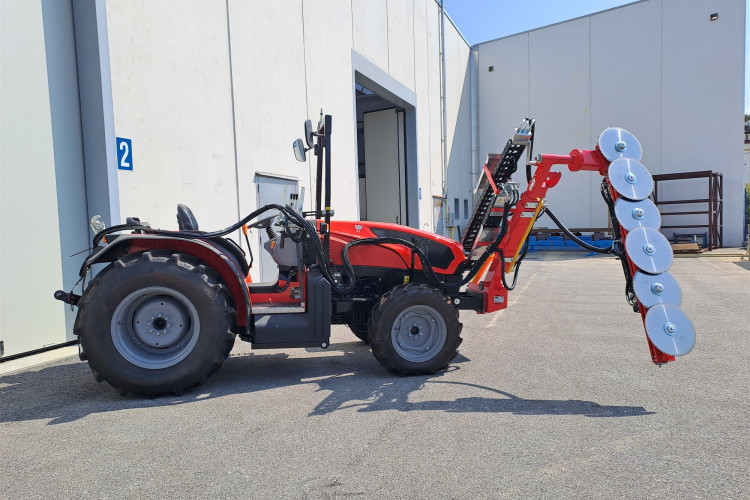

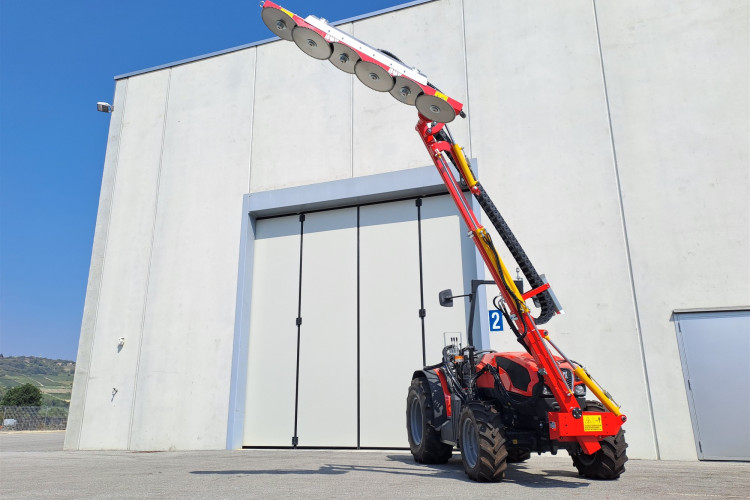

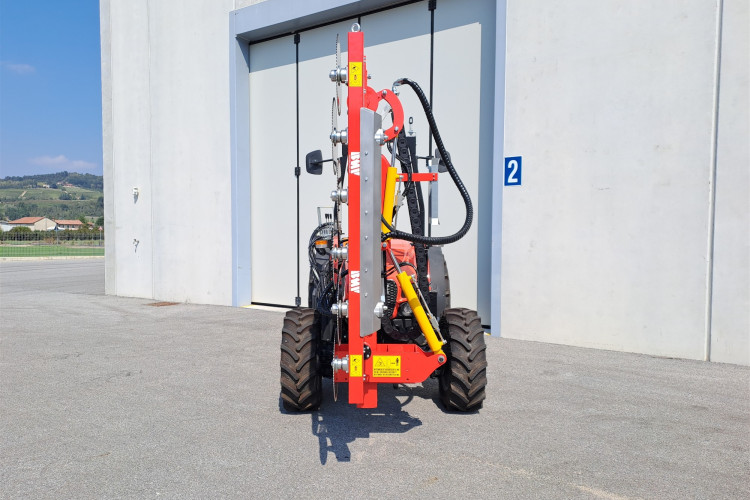

Pruning machine model FL300NPruning machine model FL300NPruning machine model FL300NPruning machine model FL300NPruning machine model FL300NPruning machine model FL300N

Video

PDF sheets

English - FL300N brochure

Italian - FL300N brochure
